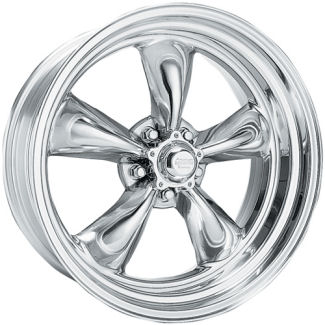

American Racing Torq Thrust II custom wheel.  This wheel is a two-piece fully polished aluminum wheel. It is direct bolt with conical seat lug holes for use with acorn style lugs.  Below are the part numbers and sizes available in the Torq Thrust II from American Racing.  For purchasing information click the part number.  For center caps for the Torq Thrust II click the center cap number.
Part# Size Bolt Pattern Offset Backspace Center Cap#
VN5154661 14x6 5/4.75 -2mm 3 3/8" 3505293
VN5154665 14x6 5/4.5 -2mm 3 3/8" 3505293
VN5154761 14x7 5/4.75 0mm 4" 3505293
VN5154765 14x7 5/4.5 0mm 4" 3505293
VN5155461 15x4 5/4.75 -25mm 1 1/2" 3505293
VN5155465 15x4 5/4.5 -25mm 1 1/2" 3505293
VN5155661 15x6 5/4.75 -2mm 3 3/8" 3505293
VN5155665 15x6 5/4.5 -2mm 3 3/8" 3505293
VN5155761 15x7 5/4.75 -6mm 3 3/4" 3505293
VN5155765 15x7 5/5 -6mm 3 3/4" 3505293
VN5155773 15x7 5/4.75 -6mm 3 3/4" 3505293
VN5155861 15x8 5/4.75 -18mm 3 3/4" 3505293
VN5155863 15x8 5/4.5 0mm 4 1/2" 3505293
VN5155865 15x8 5/4.5 -18mm 3 3/4" 3505293
VN5155866 15x8 5/4.5 0mm 4 1/2" 3505293
VN5155873 15x8 5/5 -18mm 3 3/4" 3505293
VN5155161 15x10 5/4.75 -44mm 3 3/4" 3505293
VN5155165 15x10 5/4.5 -44mm 3 3/4" 3505293
VN5155173 15x10 5/5 -44mm 3 3/4" 3505293
VN5156761 16x7 5/4.75 0mm 4" 3505293
VN5156765 16x7 5/4.5 0mm 4" 3505293
VN5156773 16x7 5/5 0mm 4" 3505293
VN5156861 16x8 5/4.75 -11mm 4" 3505293
VN5156863 16x8 5/4.75 +8mm 4 3/4" 3505293
VN5156865 16x8 5/4.5 -11mm 4" 3505293
VN5156867 16x8 5/4.5 +10mm 4 7/8" 3505293
VN5156873 16x8 5/5 -11mm 4" 3505293
VN5157761 17x7 5/4.75 0mm 4" 3505293
VN5157765 17x7 5/4.5 0mm 4" 3505293
VN5157773 17x7 5/5 0mm 4" 3505293
VN5157861 17x8 5/4.75 0mm 4" 3505293
VN5157863 17x8 5/4.75 +8mm 4 3/4" 3505293
VN5157865 17x8 5/4.5 -11mm 4" 3505293
VN5157866 17x8 5/4.5 +8mm 4 3/4" 3505293
VN5157867 17x8 5/4.5 +25mm 5 1/2" 3505293
VN5157873 17x8 5/5 -11mm 4" 3505293
VN5157874 17x8 5/5 +14mm 5" 3505293
VN51579561 17x9.5 5/4.75 +32mm 6 1/2" 3505293
VN51579563 17x9.5 5/4.75 +46mm 7" 3505293
VN51579567 17x9.5 5/4.5 +28mm 6 3/8" 3505293
VN51579574 17x9.5 5/5 +8mm 5 1/2" 3505293
VN51571163 17x11 5/4.75 +45mm 7 3/4" 3505293
VN51571167 17x11 5/4.5 +27mm 7" 3505293
